TargetProperty

The primary purpose of the TargetProperty class is to perform analysis to calculate a property of interest such as the melting point or elastic constant of a materials. This module can utilize other modules within the orchestrator to carry out the target property calculations. For example, the Target Property Module can be used to perform melting point calculations by utilizing Simulator Module and Workflow Module modules.

The abstract base class TargetProperty provides the standard interface for all of the concrete implementations.

See the full API for the module at Target Property Module.

Use Cases

Basic usage

A simple example of how to use the target property class in a standalone application for melting point calculations can be seen below. The target property class uses functionalities from several other modules such as Simulator, Workflow and Storage. The example uses the LAMMPS simulator, local storage and local workflow. The user should modify .json file located in the test_inputs folder according to needs of a specific calculation.:

from target_property import target_property_builder
from storage import storage_builder
from simulator import simulator_builder
from workflow import workflow_builder

# Choose MeltingPoint for target property type.
# Target property args are read from the input json file.
built_target_property = target_property_builder.build(
    type=MeltingPoint, target_property_args)

# Build local storage. The database path and name are not shown here
built_storage = storage_builder.build(storage_type='LOCAL')

# Build local workflow.
# Workflow root and workflow args are not shown here and read from json file.
built_workflow = workflow_builder.build(workflow_type='LOCAL')

# To estimate melting temperature using a single calculation
results_dict = built_target_property.calculate_property(
    workflow=built_workflow, storage=built_storage)
value = results_dict['property_value']
value_std = results_dict['property_std']
value_calc_ids = results_dict['calc_ids']

# To estimate melting temperature using multiple calculations with a standard deviation
results_dict = built_target_property.calculate_with_error(
    n_calc=4, workflow=built_workflow)
avg_value = results_dict['property_value']
value_std = results_dict['property_std']
value_calc_ids = results_dict['calc_ids']

KIMRun

This class uses KIM Tests to calculate material properties. This is done by invoking the KIM Developer Platform as a Podman (default) or Singularity image. calculate_property() has one required argument, get_test_result_args. This is a dictionary of keyword arguments that will be passed to a get_test_result KIM simplified query. See Querying KIM Content for more info. get_test_result_args may also be a list of dictionaries if multiple query results are desired. The model argument should be omitted, as it is provided by the potential argument to calculate_property(). In addition to the examples on this page, you can experiment with the web GUI at query.openkim.org to learn the syntax for get_test_result.

KIMRun works with Potential objects whose save_potential_to_kimkit() function saves an archive of a directory that is installable using the KIM API. Alternatively, the potential argument may be a string naming a potential that is already archived in KIMKit.

As with the generic example above, various invocations of KIMRun using a json file can be seen in test/target_property/test_inputs. This module does not use any Simulator or Storage.

Additionally, KIMRun may be invoked directly. The below example will be used to demonstrate details of usage:

from orchestrator.target_property.kimrun import KIMRun

my_kimrun = KIMRun()

print(
    my_kimrun.calculate_property(
        potential = "Sim_LAMMPS_MEAM_Lenosky_2017_W__SM_631352869360_000",
        get_test_result_args = [
                {
                    "test": ["VacancyFormationEnergyRelaxationVolume_bcc_W__TE_197190379294"],
                    "prop": ["monovacancy-neutral-relaxed-formation-potential-energy-crystal-npt"],
                    "keys": ["relaxed-formation-potential-energy"],
                    "units": ["eV"]
                },
                {
                    "test": ["VacancyFormationEnergyRelaxationVolume_bcc_W__TE_197190379294"],
                    "prop": ["monovacancy-neutral-relaxation-volume-crystal-npt"],
                    "keys": ["relaxation-volume"],
                    "units": ["angstrom^3"]
                },
                {
                    "test": ["SurfaceEnergyCubicCrystalBrokenBondFit_bcc_W__TE_378149060769"],
                    "prop": ["surface-energy-cubic-crystal-npt"],
                    "keys": ["miller-indices","surface-energy"],
                    "units": [None,"eV/angstrom^2"]
                }
            ]
        )
    )

When specifying the test key(s), the version and the prefix are optional. The value VacancyFormationEnergyRelaxationVolume_bcc_W__TE_197190379294 in the example above automatically runs the latest version of that test found in KIMKit. VacancyFormationEnergyRelaxationVolume_bcc_W__TE_197190379294_001, TE_197190379294, or TE_197190379294_001 would also be valid values that run the same test.

Any Tests requested to run by the test key(s) in get_test_result_args, as well as their Test Drivers and their upstream dependencies (i.e. almost any KIM Test depends on the LatticeConstant test for the corresponding material) must be manually archived in KIMKit ahead of time. A full listing of OpenKIM tests can be found here.

To demonstrate, consider the Test VacancyFormationEnergyRelaxationVolume_bcc_W__TE_197190379294_001. The source files are available at the bottom of its page on openkim.org (use the “Files” link at the top right to jump to the bottom). To make it possible to run the Test, you must download the .txz archives for the Test itself (VacancyFormationEnergyRelaxationVolume_bcc_W__TE_197190379294_001.txz), and its Driver (VacancyFormationEnergyRelaxationVolume__TD_647413317626_001.txz) from the linked page. Additionally note that the listing of source files contains a file named dependencies.edn containing the text [ "TE_155104699590" ]. This indicates that this Test depends on the result of another Test, which must also be installed. By searching for the Short KIM ID in the full list of KIM Tests, we can see that it is the Lattice Constant test, LatticeConstantCubicEnergy_bcc_W__TE_155104699590_007. Even if you do not need any properties computed by that Test, it must be installed to run the VacancyFormationEnergyRelaxationVolume test, so you would need to download the .txz files for the Test and its Driver in the same way.

Once you have the .txz files downloaded, you must add them to KIMKit. For example, assuming you have the 4 .txz files in question in the current working directory, the following Python script would add them to KIMKit. Drivers must be imported before corresponding Tests if the Driver is not already in KIMKit.:

import tarfile, kimkit
kimkit.models.import_item(tarfile.open(
    "LatticeConstantCubicEnergy__TD_475411767977_007.txz"))
kimkit.models.import_item(tarfile.open(
    "LatticeConstantCubicEnergy_bcc_W__TE_155104699590_007.txz"))
kimkit.models.import_item(tarfile.open(
    "VacancyFormationEnergyRelaxationVolume_bcc_W__TE_197190379294_001.txz"))
kimkit.models.import_item(tarfile.open(
    "VacancyFormationEnergyRelaxationVolume__TD_647413317626_001.txz"))

As is evident from the Test names, the choice of Test determines the crystal structure and species. All results in the example above are for BCC tungsten.

As described in Querying KIM Content, the values returned by the get_test_result queries are the KIM Property keys that are requested in the query. The full list of KIM Property Definitions is here. In the example above, the prop keys of get_test_result_args indicate that the properties that will be queried for are monovacancy-neutral-relaxed-formation-potential-energy-crystal-npt and so on. The keys keys of get_test_result_args indicate which keys will be extracted from those properties.

By default, The property_value returned as part of results_dict is a a doubly nested list. First index is over each dictionary in get_test_result_args. Second index is over the number of times the queried Test returned the queried property (e.g. multiple surface energies). Third index is over the keys requested within the property. The values may be arrays of arbitrary dimension themselves. If calculate_property() is passed the argument flatten=True, then property_value is flattened into a 1-D array (this is done for testing, as the current test suite can’t handle nested lists with inhomogeneous dimensions). Currently, uncertainty is not supported.

To demonstrate the organization of the (non-flattened) output, see the output of the Python example above, with indentation and comments added for clarity:

[
    # Result of the first query.
    # The VacancyFormationEnergyRelaxationVolume test returns a single
    # instance of the property
    # "monovacancy-neutral-relaxed-formation-potential-energy-crystal-npt",
    # Therefore there is only one element corresponding to returned
    # property instances. Because we only requested one key from this property
    # ("relaxed-formation-potential-energy"), there is only one element
    # in the inner list corresponding to requested keys.
    [[3.19968717282485]],
    # Result of the second query. It is analogous to above, except for
    # vacancy relaxation volume. Even though the two quantities were
    # computed by the same test, they are written to different
    # properties (in this case,
    # "monovacancy-neutral-relaxation-volume-crystal-npt"). Therefore we must
    # query for them separately.
    [[5.640063822313584]],
    # Result of the third query. Here, the
    # SurfaceEnergyCubicCrystalBrokenBondFit test returns 4 instances of the
    # "surface-energy-cubic-crystal-npt" property, corresponding to different
    # Miller indices, so there are 4 elements in the list corresponding to
    # returned property instances. Within each of those lists, there are two
    # elements corresponding to the keys we requested -- "miller-indices" and
    # "surface-energy"
    [
        [[1, 1, 1], 0.2278375012400934],
        [[1, 0, 0], 0.214109530467288],
        [[1, 2, 1], 0.2130027972015625],
        [[1, 1, 0], 0.1817853309873278]
    ]
]

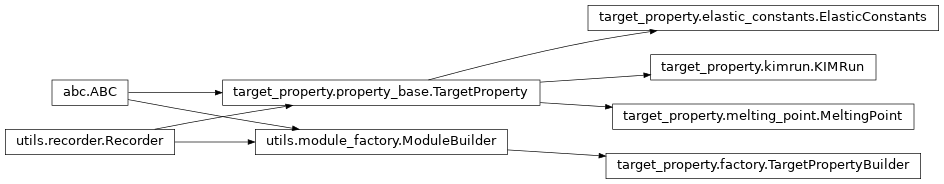

Inheritance Graph
