Workflow

This module handles the submission and retrieval of simulations to either a local computer or HPC resources, managing the file structure of the simulations, and retains information on the location of job files.

To see a list of currently implemented job schedulers, see the full API for the module at Workflow Module. The abstract base class Workflow provides the standard interface for all of the concrete implementations. We also provide an abstract base class for HPC schedulers: HPCWorkflow

The simplest implementation provides an interface with the local command line, but interface with job schedulers or other more sophisticated tools, such as Merlin is also possible.

Use Cases

LocalWF

Implementation for running jobs locally on a personal computer or an interactive job session LocalWF. Note that all of the modules define a default workflow which is used if a workflow is needed but not supplied. This default is an instance of LocalWF with the root directory set to the module’s name.

SlurmWF

A default script template for the slurm batch file is provided, but the user can define their own and provide it’s path via the default_template keyword in the workflow_args dictionary passed to the Workflow constructor. Also note that if synchronous (blocking) behavior is desired, this can be toggled with the synchronous keyword in the job_details dict provided to submit_job().

The job_details dict also hosts any modifications to the batch job desired, with the default batch template defining all possible options:

#!/bin/bash
#SBATCH -N <NODES>
#SBATCH -p <QUEUE>
#SBATCH -A <ACCOUNT>
#SBATCH -t <WALLTIME>
<EXTRA_HEADER>

<PREAMBLE>

<COMMAND>

<POSTAMBLE>

In addition to these keywords (which should be set as lowercase, i.e. ‘preamble’), default queue, account, walltime, and node parameters can be set. Lastly, the frequency of calls to squeue are set by wait_freq, which has a default of 60 seconds.

The workflow is designed to have flexibility for heterogenous use cases. To this end, default parameters can be set by the user when constructing the Workflow via the workflow_args dict, but many of these parameters can be overridden for any specific job by providing them in the job_details dict of the submit_job() function.

When using an asynchronous workflow, it is important to use a blocking function to ensure necessary calculations are done before proceding. An example is SlurmWF’s block_until_completed() method, which would be called right before the outcomes of any set of calculations are needed by subsequent functions or modules.

LSFWF

LSFWF is provided as a mirror to SlurmWF that enables the use of IBM’s LSF scheduler. Much of the previous description applies to this scheduler as well. The differences will be highlighted below.

SlurmtoLSFWF

Moreover, SlurmtoLSFWF is provided as a mirror to LSFWF that enables submitting jobs on a LSF machine while running Orchestrator on a Slurm machine. To use this functionality, the preamble needs to be set in the job_details dict to do the necessary exports and sourcing for kim_api on a LSF machine (see setup_tests.zsh for the details), so that LAMMPS can be used on the LSF machine without activating Orchestrator.

AiidaWF

An interface for the AiiDA framework has been implemented as a Workflow for the Orchestrator. This must be combined with any of the oracles found in AiiDA API documentation. As AiidaWF inherits from HPCWorkflow, all of the variables related to job submission are the same. These values can be seen at the HPCWorkflow API documentation.

Slurm and LSF Differences

While Slurm and LSF perform the same function, there are subtle differences in keyword selection and use cases. The LLNL LC reference pages for Slurm and LSF are good places to start for details on these schedulers. Differences in flags used for specifying the jobs can also be found in the chart here.

Full documentation for Slurm sbatch and LSF bsub can be found at the provided links.

Development Plan

As use cases for the Orchestrator are fleshed out, more complex workflows can be developed. These may interface with tools such as Maestro and/or Merlin, or other software entirely.

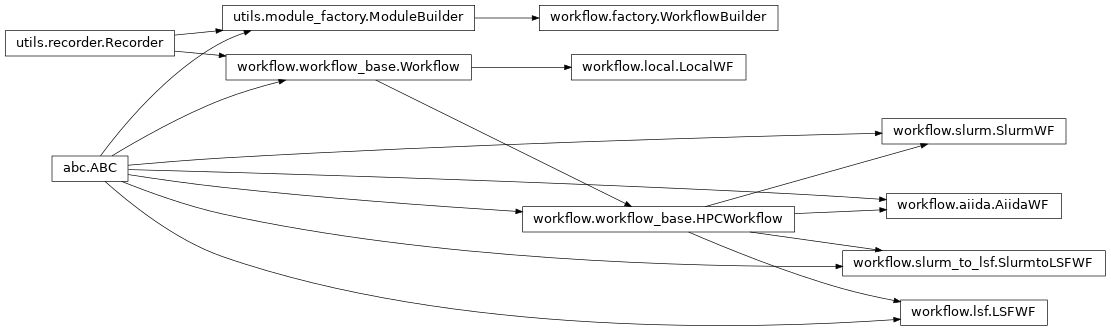

Inheritance Graph
